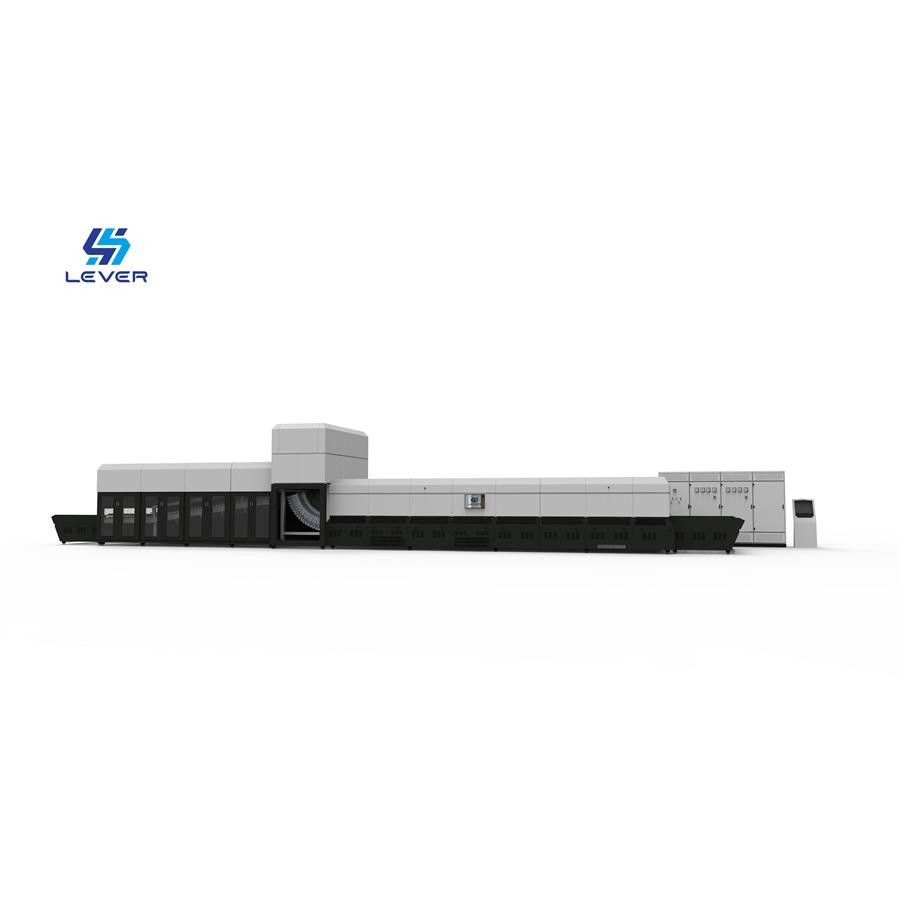

customized Bend Glass Tempering Machine Furnace car auto Mini Glass Bending Furnace making oven

► LV-TB-L Series

Continuous Glass Toughening & Bending Plant / Glass Toughened Furnace / Continuous Glass Tempering & Bending Furnace

for Automotive Side window glass with high production and high precision,

1. Machine Application

• Continuous Bending Glass Tempering Furnace /Bending Glass Toughening Plant is a special plant used to produce the curved tempered glass, which is mainly used in the fields of side windows (sidelites) of automotive, trucks, shower room, furniture, etc. The side door of the automotive should be single curvature. Our customer produced the side doors for BMW, Audi, Toyota, Honda, Hyundai, Peugeot, etc.

2. Supply Scope:

• Loading table
• Heating section
• Bending Glass section (Rigid shaft bending)
• Unloading table
• Blowers system
• Electrical & control system
• Spare parts as listed in appendix
• Technical documents

3. Main Technical Features:

• The bending forming is with servo motors & servo controllers which from Yaskawa, Japan.
• Higher precision and speed arc-changing.
• Most advanced bending forming technology in China. Easy & accurate arc-adjustment. The glass type change could be finished within few minutes.
• Helix matrix structure for heating oven, which can control the temperature of each area independently.
• Full closed heating oven and high quality Insulating materials with top performance which can ensure a minimum power consumption and uniform oven temperature.
• Fault diagnosis system for the heating elements.
• PID temperature control,
• Preventive function for the wrong operation
• Synchronous and asynchronous running of each section
• Power monitoring function
• Suitable for processing clear float glass, patterned glass, reflective glass, low-e glass, etc.
• Standard for processed products: GB15763.5, GB9656, EN12150-1:2000, ECER-43, ANSIZ97.1, etc.
